KCL Gravity LED - Headlights
Will this fit?
Constant vehicle weight must be reviewed.
Bumpers, winches, skid plates, roof loads, campers, and constant cargo can change the correct spring rate.
Select everything already installed or planned. These details improve the recommendation but do not replace final SFW spring-rate confirmation.
Add this part to the Build Your Truck planner to combine it with wheels, tires, suspension, armor, lighting and estimated installation.
Confirm the exact vehicle, year, trim, existing modifications, and intended use before ordering. Vehicle modifications can affect handling, safety systems, warranty coverage, emissions compliance, and road legality. Requirements vary by location; professional installation is recommended unless the product instructions state otherwise.
We do not sell or install products intended to defeat, bypass, or disable emissions-control equipment. Some performance parts may be restricted to competition or off-highway use. Verify applicable EPA and California Air Resources Board requirements, including any required Executive Order, before purchase or installation.
Shipping is charged at the carrier's rate, quoted at checkout. Orders with more than one item add a handling fee of $4.98 per additional item (first item free).

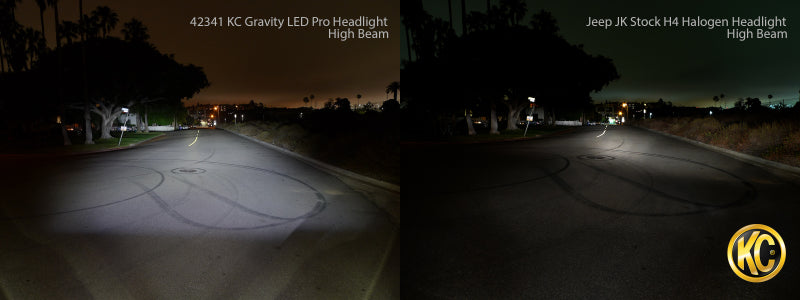

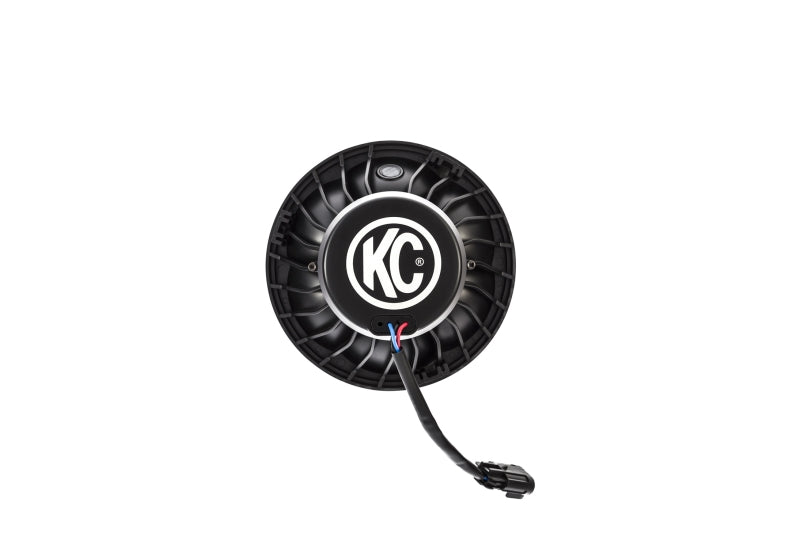

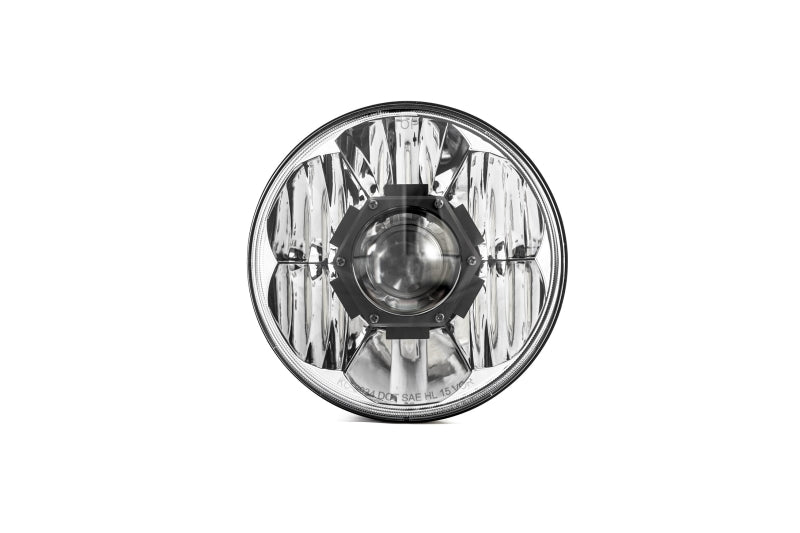

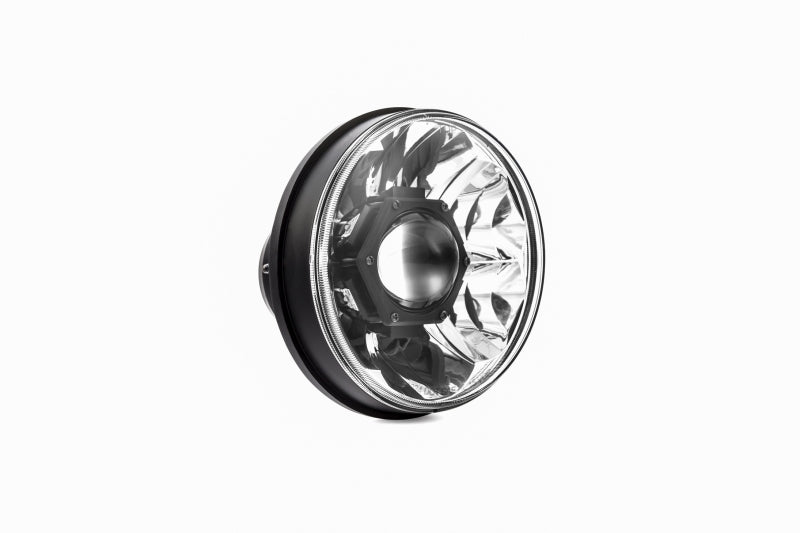

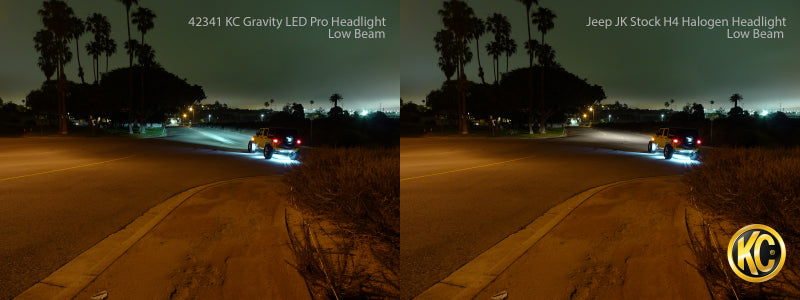

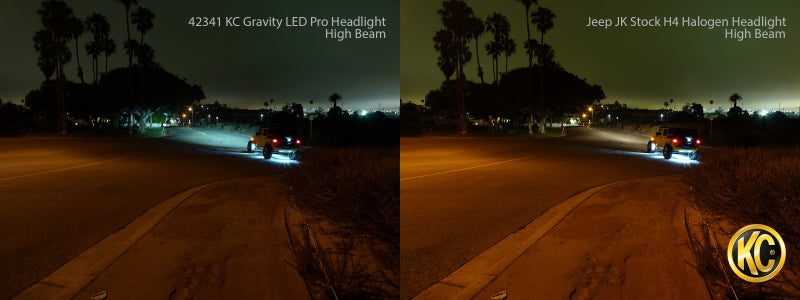

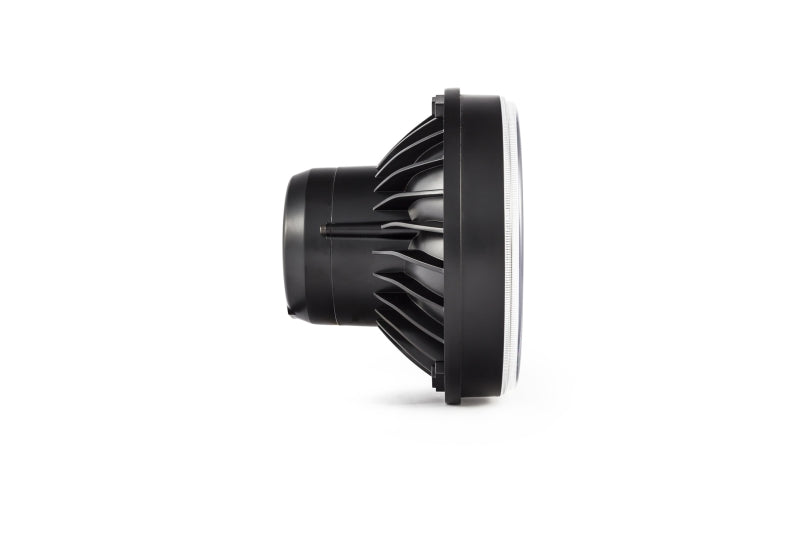

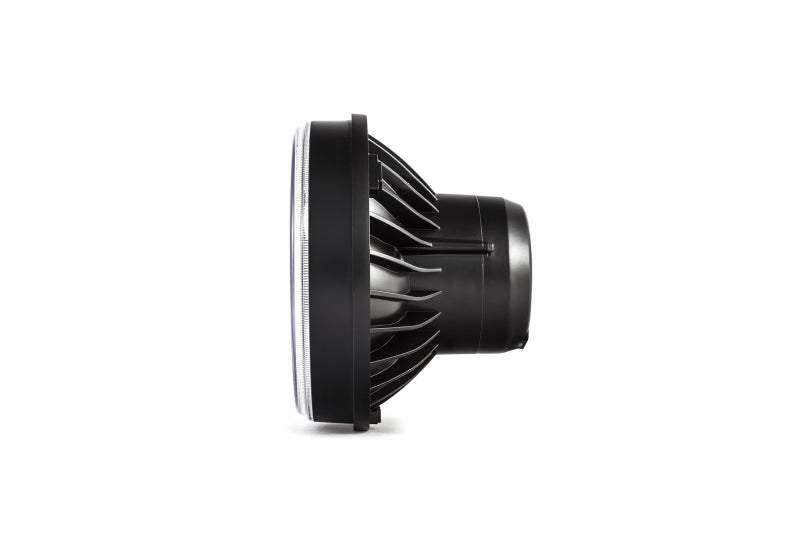

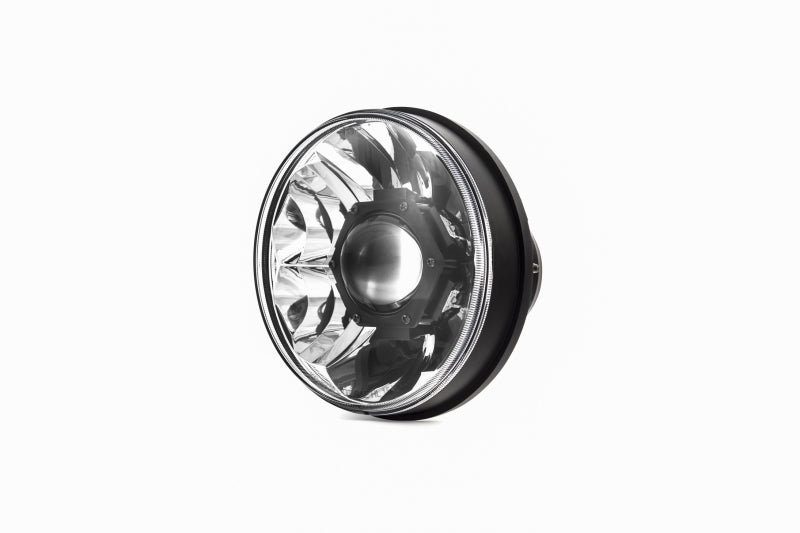

FEATURES-Patented Gravity Projector Optics (GPO)-DOT Compliant High/Low Beams with Day Running Light Support(Standard in Canada Spec 07-18 Jeep JK)-Hard Coated Polycarbonate Lens-Precision Die-Cast Aluminum Housing-Plug-n-Play for 07-18 Jeep JK/JKU With Factory Halogen HeadlightsLIGHT PERFORMANCE-Raw Lumens: Low- 2,967 lm, High- 2,575 lm, DRL- 386 lm-Lux @ 10 Meters: Low- 400 lx, High- 700 lx?-Candela: Low- 40,000 cd, High- 70,000 cd-Beam Distance: Low- 400m, High- 529mSPECIFICATIONS-Wattage: Low- 18W, High- 25W, DRL- 1.35W-LED Bulb: CREE: XP HI/XPG2-Color Temp: 5000K-Amp Draw: 1.88A-Voltage: 9V-18V-IP Rating: IP68-Product Dimensions: W - 6.96" x D - 5.098" GRAVITY LED EXTREME OUTPUT AND EFFICIENCYThe Gravity LED Pro 7" headlight uses KC's newly patented Gravity Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity and output.HIGH-PERFORMANCE LED OPTICSThe Gravity LED Pro 7" Headlight features KC's patented Gravity GPO & GRD technology, which is engineered to direct every lumen from the LEDs to the reflector optics.HIGH/LOW/DRL FUNCTIONSHigh/Low beams with DRL functionality comes standard in this KC LED projector headlight greatly improving visibility and clarity over factory 07-18 Jeep JK halogen headlights.DESIGNED FOR DURABILITYSurrounding our high-performance Pro 7" Headlight is a durable die-cast housing and a hard coated Polycarbonate lens, designed to withstand the harshest climates, terrains and driving conditions.
