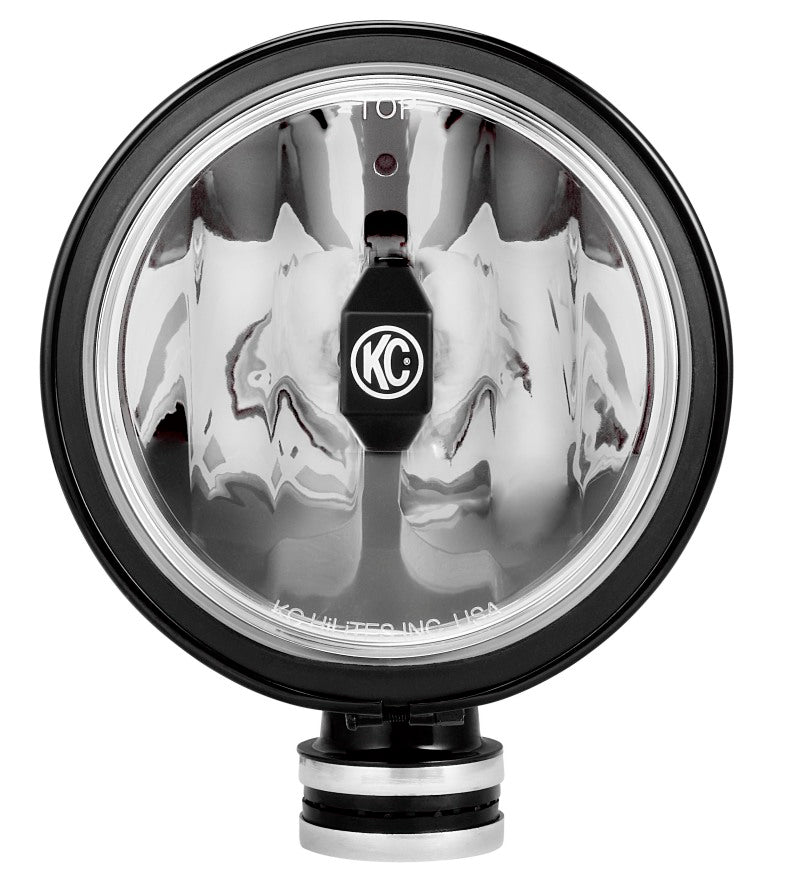

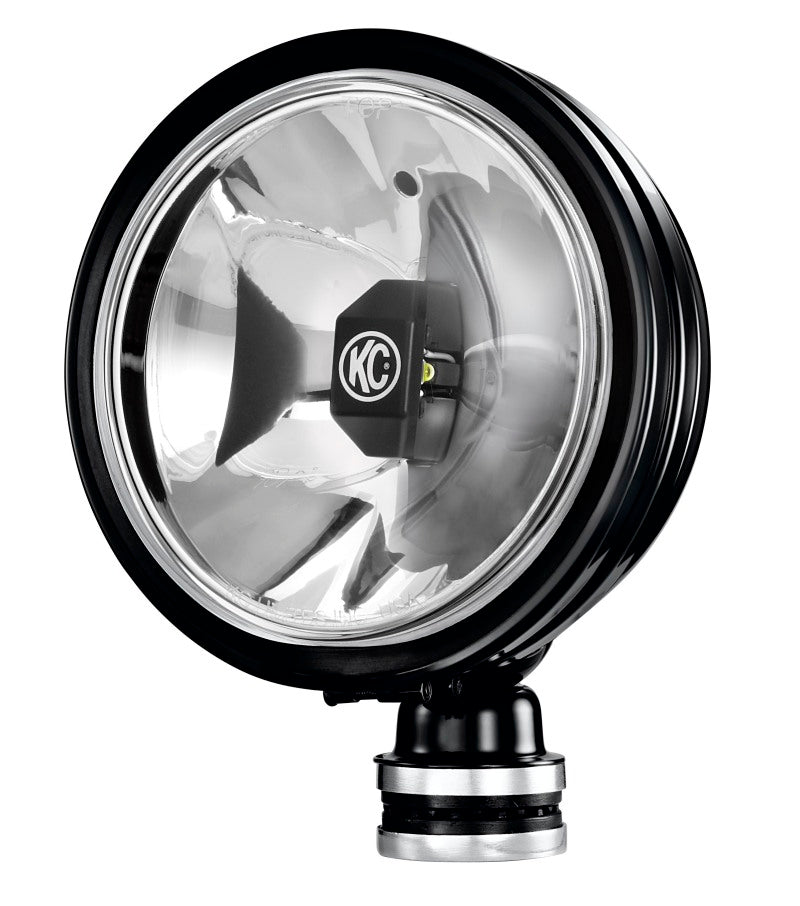

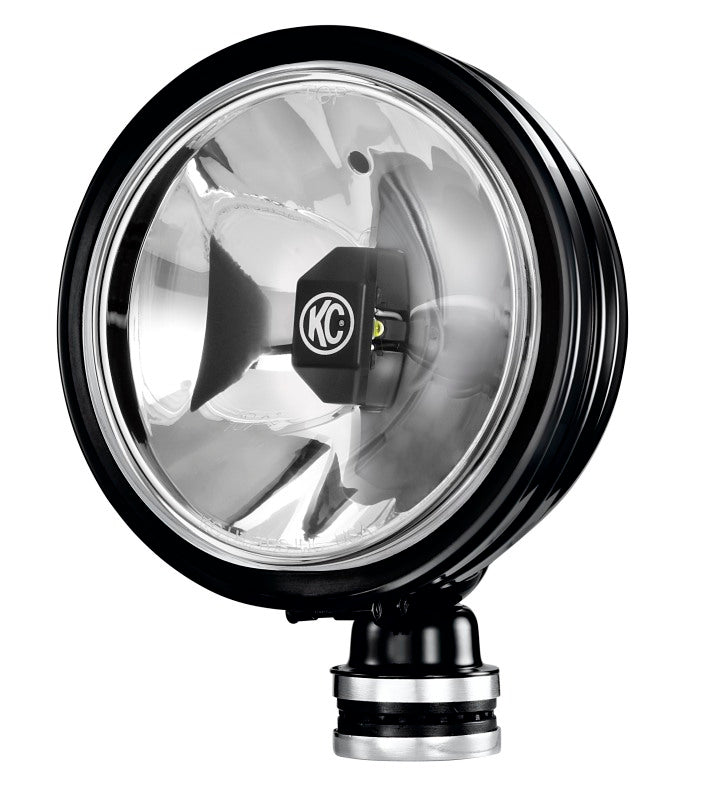

KCL Gravity LED - Daylighter
Will this fit?
Constant vehicle weight must be reviewed.
Bumpers, winches, skid plates, roof loads, campers, and constant cargo can change the correct spring rate.
Select everything already installed or planned. These details improve the recommendation but do not replace final SFW spring-rate confirmation.
Add this part to the Build Your Truck planner to combine it with wheels, tires, suspension, armor, lighting and estimated installation.
Confirm the exact vehicle, year, trim, existing modifications, and intended use before ordering. Vehicle modifications can affect handling, safety systems, warranty coverage, emissions compliance, and road legality. Requirements vary by location; professional installation is recommended unless the product instructions state otherwise.
We do not sell or install products intended to defeat, bypass, or disable emissions-control equipment. Some performance parts may be restricted to competition or off-highway use. Verify applicable EPA and California Air Resources Board requirements, including any required Executive Order, before purchase or installation.
Shipping is charged at the carrier's rate, quoted at checkout. Orders with more than one item add a handling fee of $4.98 per additional item (first item free).

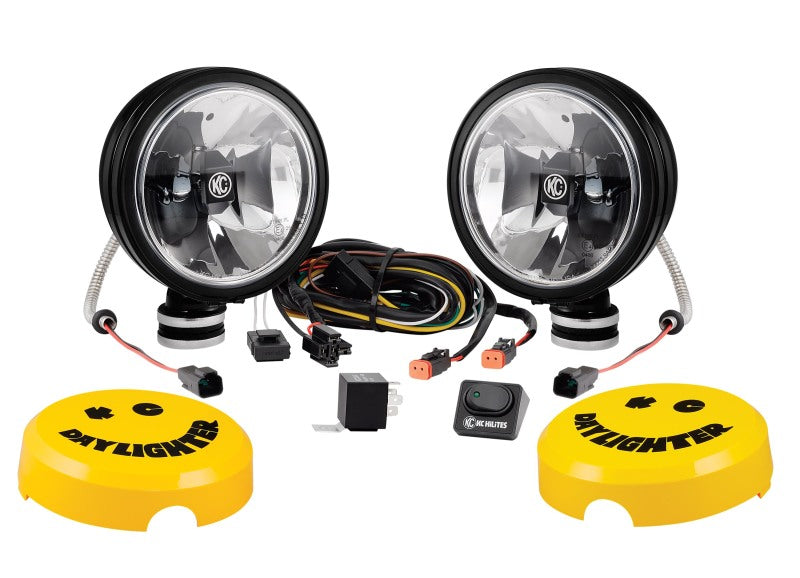

FEATURES-2 x 20W Gravity LED G6 optical inserts -Black Powder Coated Steel housing -Hard Coated Polycarbonate Lens -Driving Beam Pattern LIGHT PERFORMANCE(PER LIGHT)-Raw Lumens: 2,300 lm -Lux @ 10 Meters: 1,310 lx -Candela: 131,000 cd -Beam Distance (Meters): 724m SPECIFICATIONS(PER LIGHT)-Wattage: 20W -LED Source: CREE XPL HD LED -Amp Draw: 1.63A -Voltage: 9V-32V -IP Rating: IP68 -Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38" Parts Included in every Pair Pack System-(2) 20W 6" Gravity LED Daylighter lights -Deluxe Wiring Harness w/ 2-Pin weather proof connectors -(2) Protective KC Daylighter light Guards -30A Illuminated Switch w/ Switch Panel GRAVITY GRD EXTREME OUTPUT AND EFFICIENCY Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward. AVAILABLE BEAM PATTERN AND ADVANTAGES Driving Beam - SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights. ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency. RACE PROVEN STRENGTH & DURABILITY The race-proven steel housing combined with our IP68 rated Gravity G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
